Advanced usage

Getting a subset of edges

edges can take an optional keyword argument edge_indexes to specify which kind of edges to return. Here is an example with a cubic lattice, but this works for any lattice.

using CairoMakie
using LatticeMaker
L = CubicLattice(2, 3, 4)

Lattice{3}(UnitCell{3}(((1.0, 0.0, 0.0), (0.0, 1.0, 0.0), (0.0, 0.0, 1.0)), [(0.0, 0.0, 0.0)], [(1, (1, 0, 0), 1), (1, (0, 1, 0), 1), (1, (0, 0, 1), 1)]), (2, 3, 4), (false, false, false))

edges1 = edges(L; edge_indexes=[1])

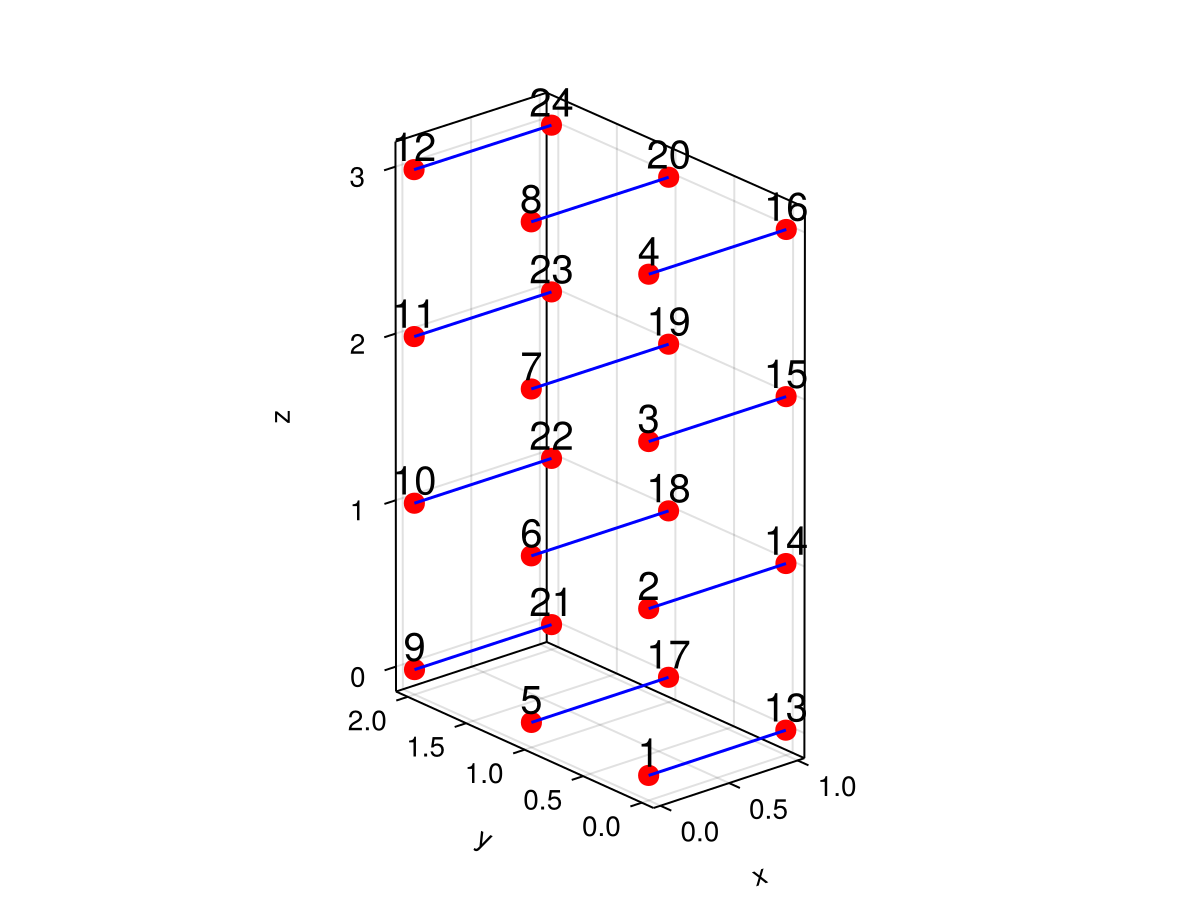

plot_lattice(sites(L), positions(L), edges1)

edges2 = edges(L; edge_indexes=[2])
plot_lattice(sites(L), positions(L), edges2)

edges2 = edges(L; edge_indexes=[3])

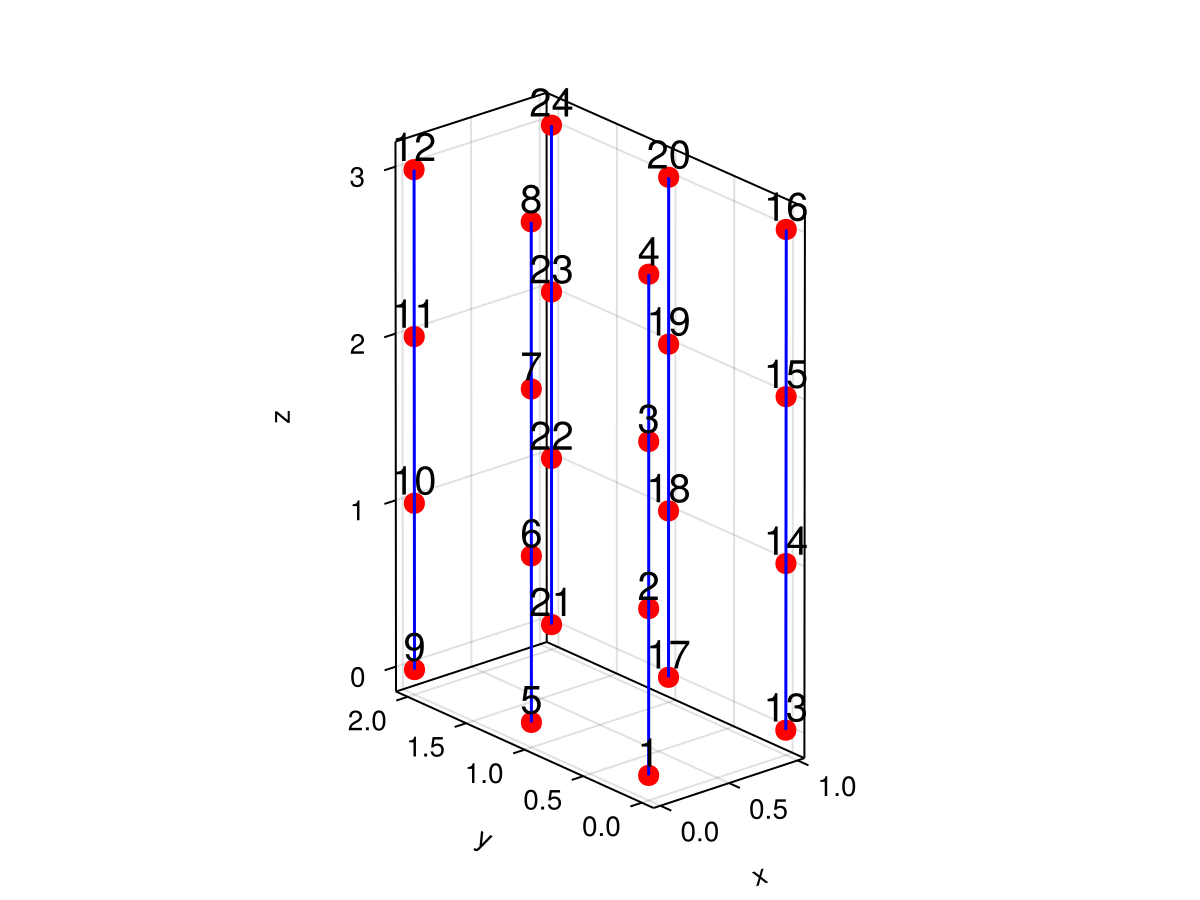

plot_lattice(sites(L), positions(L), edges2)

edge_indexes indexes the edge specified in the UnitCell of the lattice. For example, for the cubic lattice, the UnitCell is:

const CUBIC_CELL = UnitCell(
    ((1.0,0.0,0.0), (0.0,1.0,0.0), (0.0,0.0,1.0)),
    [(0.0,0.0,0.0)],
    [(1, (1,0,0), 1), #edges 1 (along x)
     (1, (0,1,0), 1), #edges 2 (along y)
     (1, (0,0,1), 1)] #edges 3 (along z)
)

See Custom lattices for more details on how to specify the UnitCell of a lattice.

Getting a subset of sites

Some UnitCell may contain more than one site. For example, the UnitCell of the hexagonal lattice is:

const HEXAGONAL_CELL = UnitCell(
    ((1.0,0.0), (0.5,sqrt(3)/2)),
    [(0.0,0.0),
     (0.5, sqrt(3)/6)],
    [
     (1, (0,0), 2),
     (1, (-1,0), 2),
     (1, (0,-1), 2),
    ]
)

In order to only get a subset of sites, you can use the site_indexes keyword argument of sites:

L = HexagonalLattice(4, 5)
sites(L; site_indexes=[1])

20-element Vector{Int64}:
  1
  3
  5
  7
  9
 11
 13
 15
 17
 19
 21
 23
 25
 27
 29
 31
 33
 35
 37
 39

sites(L; site_indexes=[2])

20-element Vector{Int64}:
  2
  4
  6
  8
 10
 12
 14
 16
 18
 20
 22
 24
 26
 28
 30
 32
 34
 36
 38
 40
