Square Lattice

Build a square lattice with periodic boundary conditions in both directions:

using CairoMakie
using LatticeMaker
L = SquareLattice(7, 5; periodic = (true, true))

Lattice{2}(UnitCell{2}(((1.0, 0.0), (0.0, 1.0)), [(0.0, 0.0)], [(1, (0, 1), 1), (1, (1, 0), 1)]), (7, 5), (true, true))

Get the edges of the lattice:

edges(L)

70-element Vector{Vector{Int64}}:
 [1, 2]
 [1, 6]
 [6, 7]
 [6, 11]
 [11, 12]
 [11, 16]
 [16, 17]
 [16, 21]
 [21, 22]
 [21, 26]
 ⋮
 [15, 20]
 [16, 20]
 [20, 25]
 [21, 25]
 [25, 30]
 [26, 30]
 [30, 35]
 [31, 35]
 [5, 35]

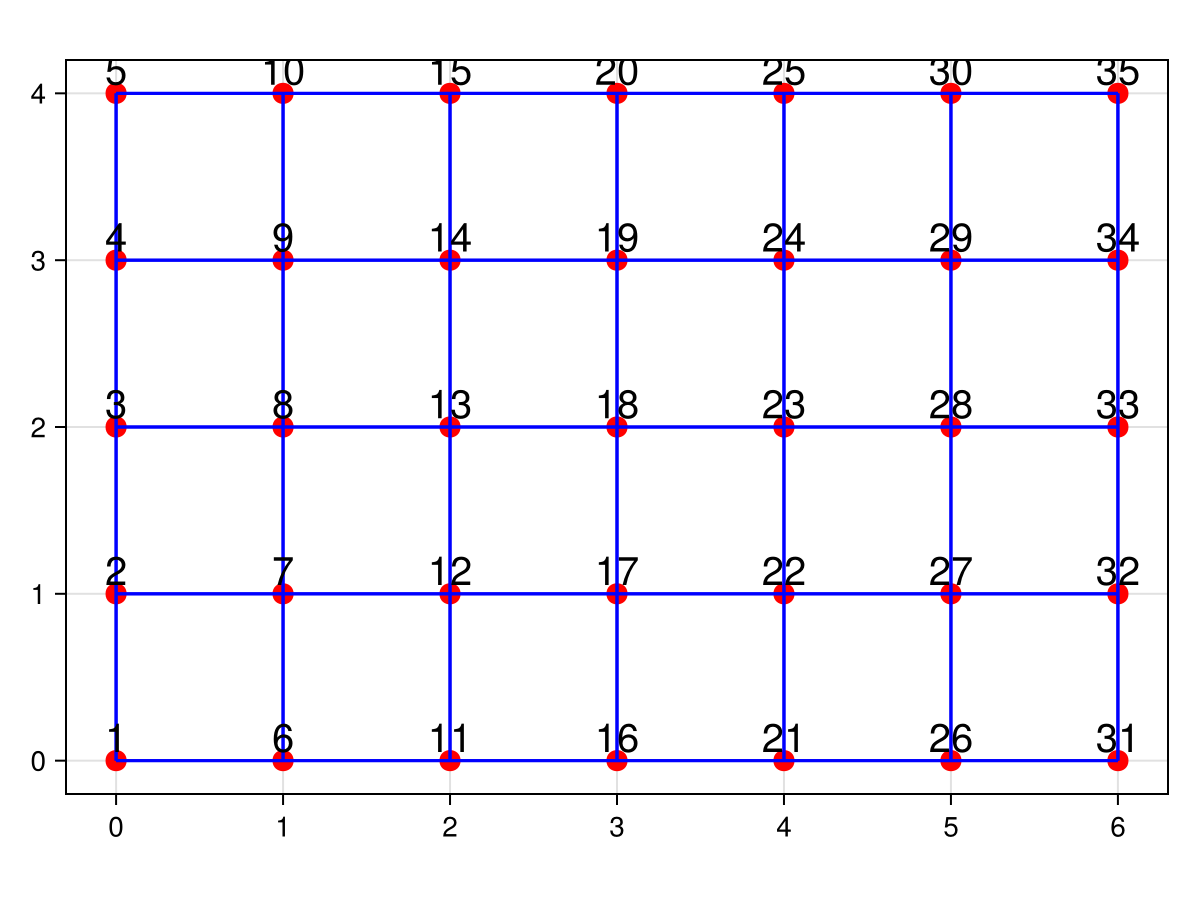

Plot the lattice:

plot_lattice(L)
